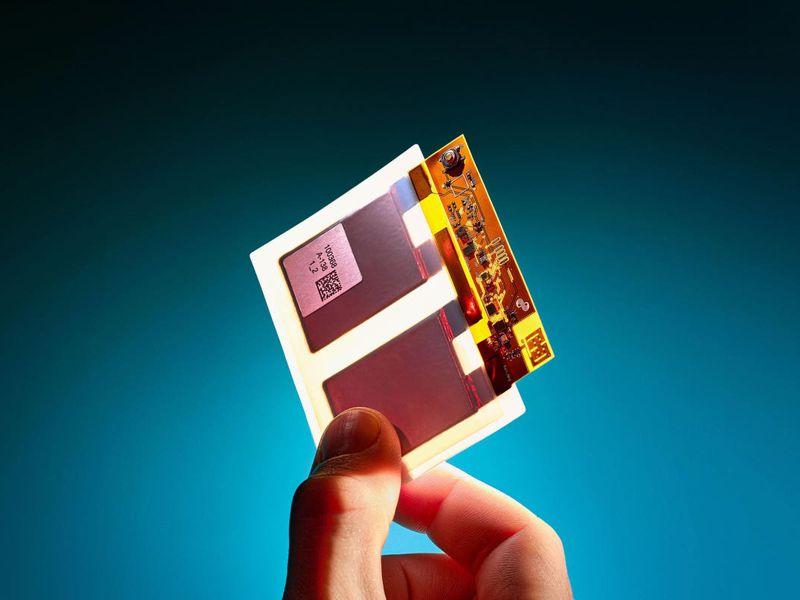

Printed Nano Computer
The Nano Computer was created to make assets programmable on the Nodle Chain, and create a path towards sub $1 computing.
The Nano Computer is printed, instead of assembled, using an eco-friendly based battery designed by Imprint Energy.
The rechargeable batteries printed into the N1 use a new zinc based chemistry that have a 92% lower greenhouse gas impact than lithium ion pouch cells (Which are common in electronics like smartphones).
Enterprise, On-Chain Computing
The N1 is web3 native hardware, using an onboard secure element to encrypt and protect customer data.
The N1 is powered by an ARM Cortex-M0, running basic "apps" that can communicate with the Nodle Blockchain. The first app that allows the N1 to be located through the Nodle Network has been open sourced here: https://github.com/NodleCode/n1.
With Nodle Smart Missions, The N1 represents a reference design (built on Renesas Dialog) where hardware will be able to trigger actions on-chain. Smart Missions will allow applications such as proof-of-delivery or proof-of-attendance using Bluetooth devices to trigger actions. Being fully open, the N1 can even support other networks, like Google's Finder Network, given the device is registered first on Nodle.
Designed for logistics use cases...
The N1 was designed for logistics use cases in mind, but with an open source, configurable design, nearly anything is possible.
Cargo and high value packages
The N1 locates and collects data from high value assets like medicines or luxury goods. The N1 cryptographically proves an item has arrived, and can provide visibility when a package is lost.
Shipping
Pallets
Shipping Pallets carrying vegetables or supply chain components can report back if they are at the proper temperature, humidity, or if they have been mishandled.
Anything
you want
The N1 is designed for a future of a trillion things, and can be stuck to nearly anything. With a programmable computer, the N1 can be configured for next generation, Web3 Native apps.
A shipping pallet moving perishable food can now monitor temperature, motion and humidity, then compute that data locally at the edge. It's these nano streams of data that will make civilization more efficient and allow humans to tackle larger problems as a whole.
Nodle Network
Nodle is a decentralized network made up of millions of smartphones. By downloading the app, you become a "node", participating in the network and earning rewards in return. The more people join, the more powerful the network becomes.
Be part of the group of people rewarded to NODL cryptocurrency!
Download ProductsN1 Specifications

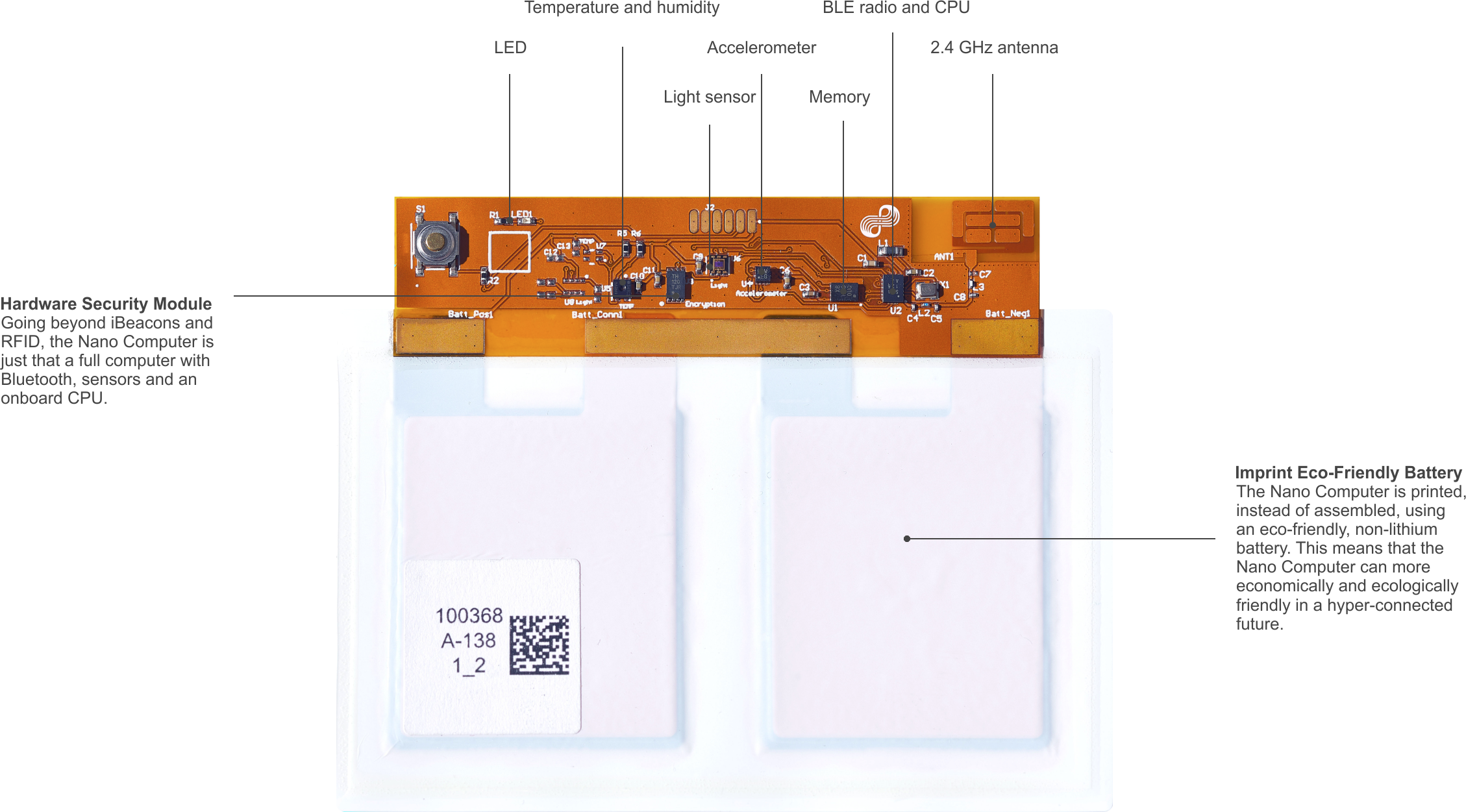

Just look inside the "box" to see World's First Eco Friendly Printed Nano Computer.
| # | Item | Description |
|---|---|---|
| 1 | 16 MHz ARM Cortex-M0+ (DA14531) Bluetooth 5.0 System on a Chip (SoC) ASIC |
Dual crystal oscillators 32 kB of OTP memory 48 kB of RAM onboard |
| 2 | 1 Mb external Flash | |
| 3 | Imprint Eco-Friendly Battery |
Expected battery life 5 weeks+ Rechargeable Min current draw is <500 nA |
| 4 | External Hardware Security Module (ATECC608B) |
SHA-256 & HMAC and AES-128 Storage space for 16 keys/certificates FIPS186-3 Elliptic Curve Digital Signature FIPS SP800-56A Elliptic Curve Diffie-Hellman P256 Elliptic Curve |
| 5 | Sensors (MEMS) |
Temperature Humidity Shock and vibration Ambient light levels Battery Level CPU temperature |
| 6 | Programmable LED |
